| *Model No.: | FG3018638 |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Natural Clay |
| *Size: | 300*1200*18mm |
| *Color: | Red |
| *Packaging Details: | Wooden Crate |
| *Payment Terms: | L/C, T/T, Western Union |
| *Port: | Xiamen |
| *Delivery Time: | 25 days after receiving deposit |
| *Certification: | CE, ISO9001:2006 |
terracotta is a material based on clay, which is carved or molded into a specific shape before being dried, glazed and fired.The material is perfect for replicating the textures, colors or finishes encountered in the historical type of terracotta. It is great for multiple applications like cladding for columns, walls and architectural elements for sculpture, bas-relief or domes.

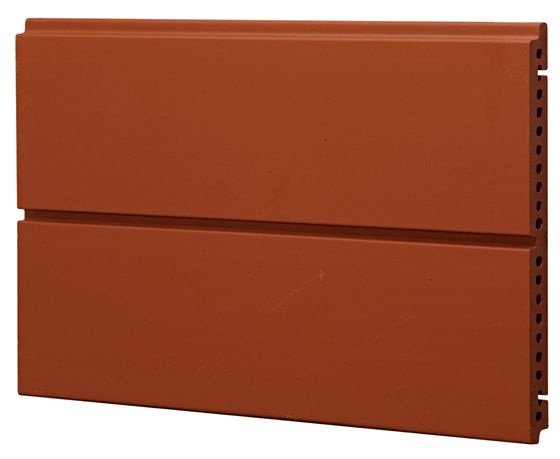

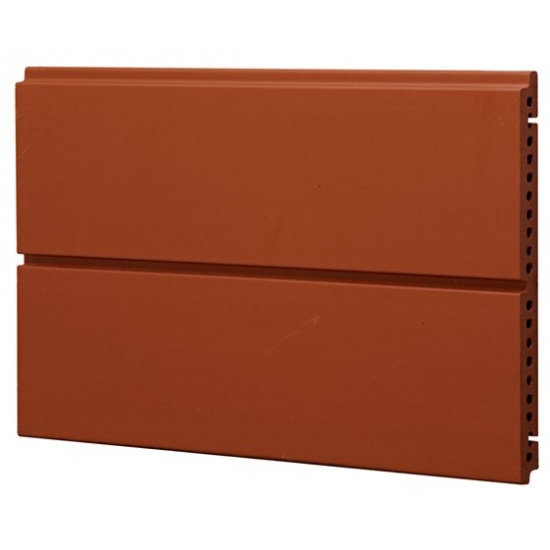

HEAT PRESERVATION TERRACOTTA EXTERIOR WALL MATERIALS
DESCRIPTION
LOPO Terracotta has imported molding machines of vacuum extrusion and domestic longest roller kiln (260-meter) with 428 firing units for exterior wall facade tile, 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons, the semi-product indoor repository with storage capacity of 150,000 tons, the automatic production line with the processing capacity of shaping, cutting and polishing, a batch storage system which can reserve 12,000 tons of prepared clay material.
KEY BENEFITS
- Natural terracotta clay materials, eco-friendly
- wide range of sizes and colors available
- Hollow structure and light weight design
- No-static and no-radiation
- Never fade, strong, excellent long-term durability
- Convenient fixing system, safe and reliable
- Extreme UV and weather resistance
- Wind and earthquake resistance
- Anti-fire, anti-freeze, heat preservation and sound insulation- Self-cleaning, low maintenance
TERRACOTTA WALL MATERIAL COLOR RANGE
SIZES AND AVAILABILITY
| Regular Product | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
| Dry Hanging Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
| Small Size Terracotta Panel | Width: 100-200mm Thickness: 10-15mm |
| Light Weight Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
| Note: | Customized is welcome! Just send us your design or sample. |
APPLICATION:
Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.
LOPO WALL MATERIAL TEST REPORT:
CHARACTERISTIC |
LOPO Specification |
Reference Standard |
Dimensions and Surface Quality |
||
Length |
±1%/max.(L:±1mm; W:±1.5mm) |
ISO10545-2 |
Thickness |
±10%/max.±1.0mm |
|
Straightness of Sides |
±0.5%/max.(L:±2mm; W:±0.5mm) |
|
Rectangularity |
±0.5%/max.±2mm |
|
Surface Flatness(curvature and warpage) |
±1%/max.±2.5mm |
|
Centre |
±1%/max.±2.5mm |
|
Side |
±1%/max.±2.5mm |
|
Warpage |
/ |
|
Surface Quality |
||
Crack |
0 |
ISO10545-2 |
Scratch |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Color Difference |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Stains |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. Number permitted≤3 |
|
Striation |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is laid flat |
|
Chipped Edge(Length/Width/Thickness) |
Front: max.(w≤1mm, T≤1mm, L≤3mm); Back: max.(w≤2mm, T≤1mm, L≤5mm); |
|
Chipped Corner(Length/Thickness) |
Front: max.(T≤2mm, L≤2mm); Back: max.(T≤2mm, L≤4mm); |
|
Physical Properties |
||
Water Absorption |
Average: E≤6%; Individual max. Value: E≤6% |
ISO10545-3/AS 4459.3 |
Density |
2.3--2.4g/cm³ |
ISO10545-3/AS 4459.3 |
Dry Weight |
31kg/m2(T18mm) |
|
Compressive Strength |
Average 81.4MPa and 11.8psi(Vertical Coring) |
ASTM C126-3 |
Impact Resistance (Coefficient of restitution) |
0.47 |
AS 4459.5 |
Modules of Rupture |
Average 14.5MPa |
AS 4459.4 |
Breaking Strength |
/ |
/ |
Thickness≤18mm |
Average≥2700N; Individual max.value≥2100N |
ISO10545-4 |
18mm |
Average≥5400N; Individual max.value≥4500N |
ISO10545-4 |
Frost Resistance |
No visible damages after 25 changes of freezing and thawing |
ISO10545-12 |
Resistance to Thermal Shock |
Free from defects after 10 cycles |
ISO10545-9/AS 4459.9 |
Thermal Conductivity |
||
Thickness≤18mm |
≤0.35w/(m . k) |
ISO10545-8 |
18mm |
≤0.47w/(m . k) |
|
Moisture Expansion |
0.007% |
ISO10545-10 |
Wind Load |
9Kpa |
ASTM E330 |
Linear Thermal Expansion |
5.46x10ˉ⁶Cˉ¹ |
ISO10545-8 |
Chemical Properties |
||
Resistance to Low Concentrations of Acids and Alkalis |
Not Lower than the requirements of ULB |
ISO10545-13 |
