| *Model No.: | F3018012 |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Natural Clay |
| *Size: | 300*1200*18mm |
| *Color: | White |
| *Packaging Details: | 31kgs/sqm |
| *Payment Terms: | L/C, T/T, Western Union |
| *Port: | Xiamen |
| *Delivery Time: | 20 days after receiving deposit |
| *Certification: | CE, ISO9001:2008 |

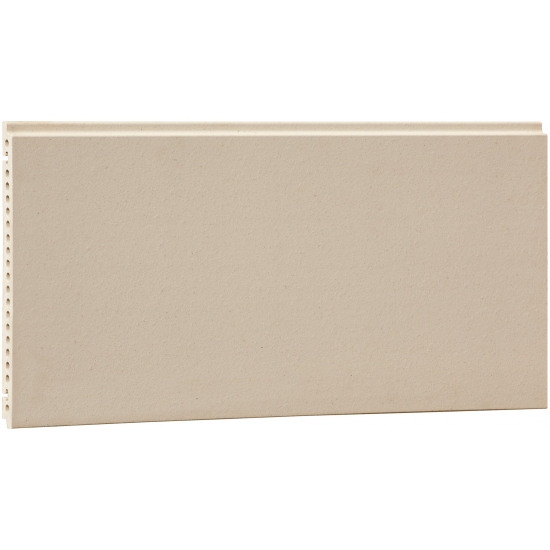

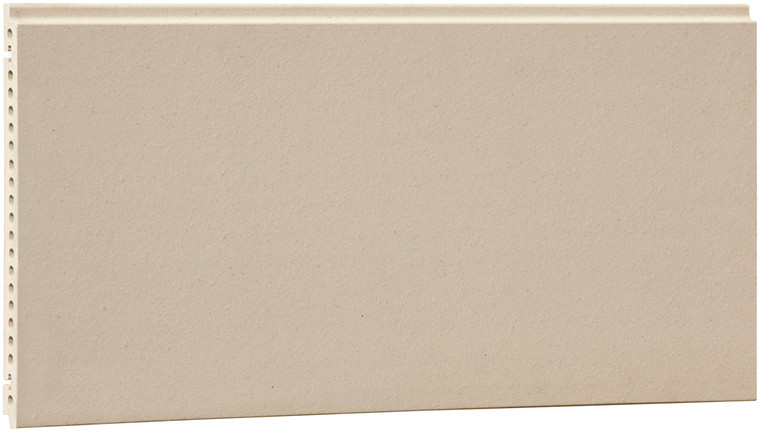

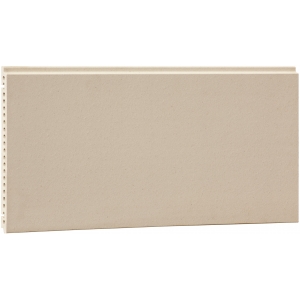

Terracotta Facade Tiles (Terracotta Panels) have got high water absorption ability due to the use of pure natural clay without incorporation of other chemical and harmful ingredients that would have otherwise damaged the final product's structure. Terracotta facade panel also have great strength and hardness since LOPO China's production equipment used is high technology.
Beige Color Terracotta Facade Tiles With Natural Line Specification:
Model No.: |
F3018012 |
Brand Name: |
LOPO |
Material: |
Natural Clay |
Supply Ability: |
2500sqm/day |
Size(W*L*T): |
300*1200*18mm |
MOQ: |
1x20’GP |
Color: |
White |
Packaging: |
Wooden Crate |
Weight: |
31kgs/sqm |
Loading: |
619.20sqm/20’GP |
Certification: |
CE, ISO9001:2008 |
Lead Time: |
20 days after receiving deposit |
Customized Design: |
Available |
Payment Term: |
L/C, T/T, Western Union |
Terracotta Facade Tiles Regular Products:
| Regular Product | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
| Dry Hanging Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
| Small Size Terracotta Panel | Width: 100-200mm Thickness: 10-15mm |
| Light Weight Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
| Note: | Customized is welcome! Just send us your design or sample. |
Wall Facade Panels Technical Data Sheet:
Terracotta Panel Technical Data Sheet |
||||
NO. |
Contents |
(300*600*18mm) Terracotta Panel |
China N. S. GB/T4100-2006 |
EN14411 standard |
1 |
Water Absorption |
5.4% |
(II) 6-10% |
(II) 6-10% |
2 |
Net Weight |
31kg/m2 |
No value |
No value |
3 |
Breaking Strength |
3475N |
≥ 900N |
≥ 750N |
4 |
Frost Resistance |
No crack under -60 centigrade |
Tested value of the report |
Tested value of the report |
5 |
Modulus of Rupture |
Avg. 13.1Mpa, min 11.8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
6 |
Earthquake Resistance |
Over 8 degree |
No value |
No |
7 |
Test Under Simulated Wind Load |
No breakage under 10Kpa |
No value |
No |
8 |
Sound Insulation |
Noise reduction by over 8dB |
7-10dB |
No |
9 |
Wind Pressure |
9kPa |
Tested value of the report |
Tested value of the report |
10 |
Heat Conductivity |
0.32 w/m.k |
No value |
No |
11 |
Fire Resistance |
level A1 |
No value |
No |
12 |
Resistance to Acid and Alkali |
Level UA |
Tested value of the report |
No |
13 |
Radioactivity |
Class-A decorative material |
No value |
No |
14 |
Right Angle |
0.1%- -0.2% |
Within ±1% |
No |
15 |
Size Error |
300L: 0.1%- -0.4% 600L: 0.2%- -0.5% |
Within±2% , max is within ±2mm, |
No |
16 |
Thickness Error |
Within ±4.5% |
Within ±10% |
No |
17 |
Diagonal Line |
-0.5 ~ +0.2 Max 1.0mm |
Within ±2% |
No |
Terracotta Facade Tiles Feature and Benefits:
1. Natural terracotta clay materials, eco-friendly
2. Rich color and surface design available
3. Hollow structure and light weight design
4. No-static and no-radiation
5. Never fade, strong and durable
6. Convenient fixing installation, safe and reliable
7. Wind and earthquake resistance
8. Anti-fire, anti-freeze, heat preservation and sound insulation
9. Self-cleaning, easy maintenance
LOPO China Production Ability:
1. Domestic longest roller kiln(260-meter) with 428 firing units;
2. 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons;
3. The new workshops and production lines under construction;
4. The semi-production indoor repository with storage capacity of 150,000 tons;
5. The automatic production line with the processing capacity of shaping, cutting and polishing;
6. A batch storage system which can reserve 12,000 tons of prepared clay material;
7. Imported molding machines of vacuum extrusion from Italy.
